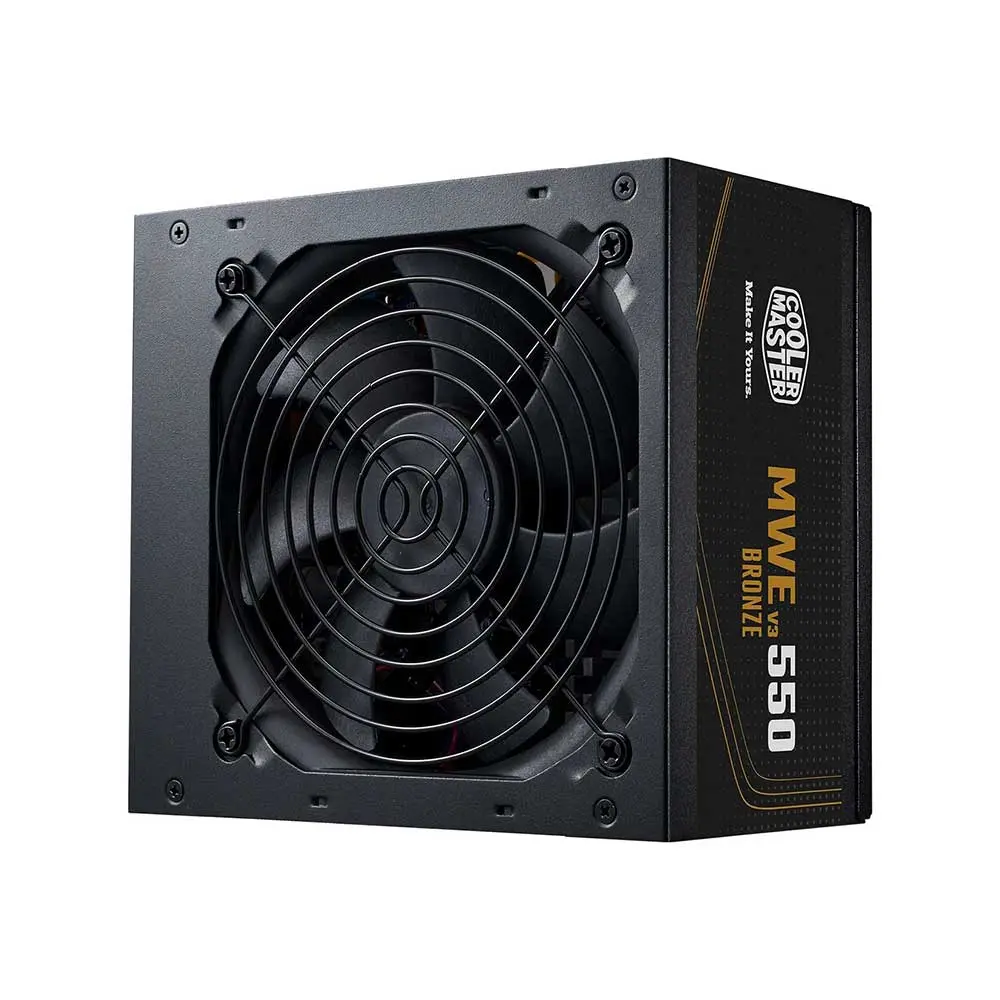

Cooler Master MWE Bronze 550 Watt V3 ATX 3.1 80 Plus Bronze Power Supply (MPE-5501-ACABW-3BIN)

No Customer Rating

Original price was: ₹5,000.Current price is: ₹4,100.

(18% OFF)

(Inclusive of all taxes)

Model No : MPE-5501-ACABW-3BIN
BUY NOW
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

Cooler Master MWE Bronze 550 Watt V3 ATX 3.1 80 Plus Bronze Power Supply

  • ATX 3.1 support
  • High temperature resilience
  • Quiet HDB fan
  • 80 Plus Bronze certified efficiency
  • Embossed cable
  • 5-year warranty

Introducing the MWE Bronze V3 230V, the evolutionary next step in Cooler Master power and the ATX 3.1 upgrade to our MWE Bronze V2 PSU. With features such as 80 Plus Bronze efficiency, a DC-to-DC + LLC circuit design, and a quiet HDB fan cooling, the V3 provides valuable performance in multiple dimensions. Several changes and additions improve the overall user experience. Together, these design choices deliver an advanced PSU that is highly efficient and reliable. With an embossed cable, exceptional temperature resilience and a 5-year warranty, the MWE Bronze V3 will evolve your machine.

Quiet HDB fan: A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.

80 Plus Bronze efficiency certification: This unit is certified to achieve more than 88% efficiency at typical loads in a 230V test.

ATX 3.1 support: Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.

Specifications:

Model NumberMPE-5501-ACABW-3BIN
ATX VersionATX 12V Ver. 3.1
PFCActive PFC
Input Voltage200-240V
Input Current5A
Input Frequency50-60Hz
Dimensions (L x W x H)140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
Fan Size120mm
Fan BearingHDB
Efficiency>88% @ Typical Load
80 PLUS Rating80 PLUS Bronze EU 230V
ErP 2014 Lot 3Yes
Operating Temperature0-40°C
Power Good Signal100-150 ms
Hold Up Time
>16ms
MTBF>100,000 Hours
ProtectionsUVP / OVP / OPP / OTP / SCP
RegulatoryTUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region’s request.)
SeriesMWE Bronze Series
Category500 to 750W
ModularNon Modular
80 PlusBronze
Form FactorATX
Watts550W
ATX 24 Pin Connectors1
EPS 8 Pin / 4+4 Pin Connectors2
SATA Connectors6
Peripheral 4 Pin Connectors3
PCI-e 6+2 Pin Connectors2
Warranty5
Note****Prices, Specifications & Features are subject to change without notice
