Description
Gamdias Atlas M1 ARGB Mid Tower ATX Cabinet Black

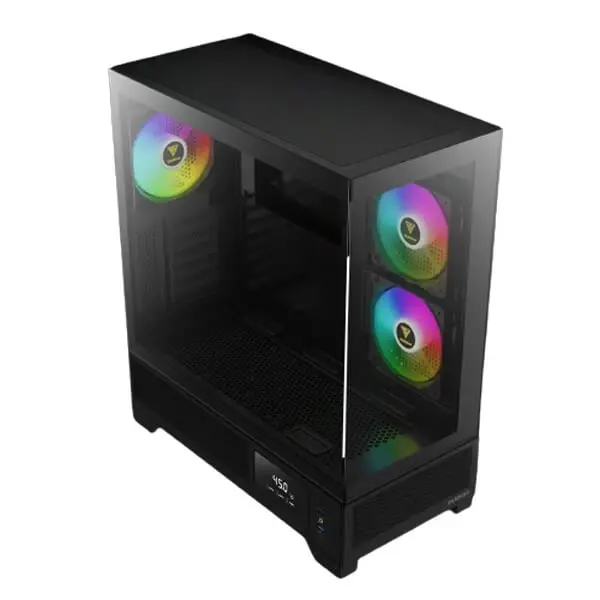

Gamdias Atlas M1 ARGB is a black mid tower pc cabinet that has front and side tempered glass panels. The Case can fit Mini-ITX, M-ATX or ATX motherboards and is compatible with 410mm GPU. The Cabinet also has pre-installed 3 built-in 120mm ARGB PWM fans.
Features:
FUNCTIONALITY WITH SEAMLESS VISUALS
- Seamless Tempered Glass Display
- Perforated Air Vent PSU Chamber
- Includes Fan Hub & Velcro Straps
- 3 Built-in 120mm ARGB PWM Fans (2 x Reverse Intake Fans)
- Customized Monitor for System Information and Ambient Temperature
- Fits Mini-ITX, Micro-ATX and ATX motherboards
- Magnetic Dust Filter
- Compatible with 410mm GPU
FUNCTIONALITY WITH SEAMLESS VISUALS
The ATLAS M1 Series is available in black and white editions. The case features perforated air vents with three built-in ARGB PWM fans for optimal airflow and a customizable monitor for real-time system information. Enjoy the benefit of seamless tempered glass panels providing stunning visuals of your build.
POWERFUL VENTILATION
The ATLAS M1 is built with perforated air vents throughout the case, vents perforated on the side panel, PSU chamber, and back exhaust to ensure superior airflow configurations.
3 PRE-INSTALLED ARGB PWM FANS WITH BUILT-IN FAN HUB
Featuring three built-in PWM ARGB fans, the case can provide exceptional lighting and fine-tuned airflow. Additionally, it includes a 6-port PWM ARGB fan hub, allowing for easy management and synchronization, ensuring a cohesive lighting setup.
BREATHTAKING VISUALS

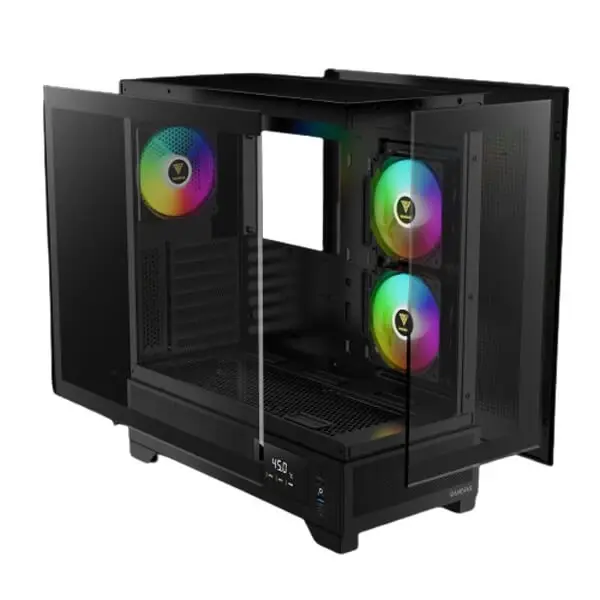

The ATLAS M1 provides a perfect view of all your components with its seamless glass panels equipped with a clasp mechanism for simple glass removal. The case excels in not only visuals but improves on the user’s modding experience.
MONITOR REAL-TIME STATUS
The embedded monitor displays real-time system information including CPU, GPU, and ambient temperature adjustable via ZEUS CAST software. Users can also switch between CPU/GPU/AMB/OFF modes through the I/O port.
COOLING SUPPORT
The ATLAS M1 can accommodate up to 6 fans and offers flexible options for the installation of radiators at the top, side, and rear.
INTERIOR ACCOMMODATION
The case offers the option to house up to ATX motherboards, air coolers with 160mm RAM clearance, and VGA cards with lengths up to 410mm.
STORAGE COMPATIBILITY
The ATLAS M1 Series supports installation of up to 4x 2.5″ or 3 x 2.5″+1x 3.5″ and can accommodate PSU lengths up to 180mm.
DUST RESISTANT
Equipped with dust filters on the top and bottom, the case effectively protects against dust while maintaining ventilation.
CONCISE I/O DESIGN
The I/O features one USB 3.2 Gen 2 Type-C port for high transfer speeds up to 10 Gbps, a USB 3.0 port, a fan LED control, a monitor mode switch, and an integrated audio jack.
Specifications:
| Model Name | ATLAS M1 |
| Case Type | MID Tower |
| MB Support | ATX、Micro-ATX、Mini-ITX |
| Synchronization | 5V 3-Pin Addressable Header |
| CASE Color | Black |
| Expansion Slots | 7+2 |
| Material | SPCC & ABS & Tempered glass |
| Window | Front, Left |
| Radiator Support | Top: 360mm、 280mm / Side: 240mm / Rear: 120mm |
| Fan Support | Top: 3 x 120mm、2 x 140mm / Side: 2 x 120mm / Rear: 1 x 120mm |
| Pre-installed Fans | Side : 2 x 120mm ARGB PWM Fans / Rear : 1 x 120mm ARGB PWM Fan |
| Drive Bays | 2 x 3.5″ or 1 x 2.5″+1 x 3.5″(HDD Cage) 2 x 2.5″(SSD Bracket) |
| I/O Port | USB 3.0 x 1, Type C x 1, HD Audio x1, LED Control x1, Monitor Mode Switch x 1 |
| Clearance | CPU cooler height limitation:160mm VGA length limitation:410mm PSU length limitation:180mm |
| Dimension (L x W x H) | 420 x 210 x 465 mm |
| Net Weight | 7.6 kg / 16 lb |
| Pre-installed Control BOX | 6 Ports Hub (3 ports are used) |
| Warranty | 1 Year |
| Note | ***Features, Price, Specifications are subject to change without notice. ***Images used for representation purposes only |
