Description

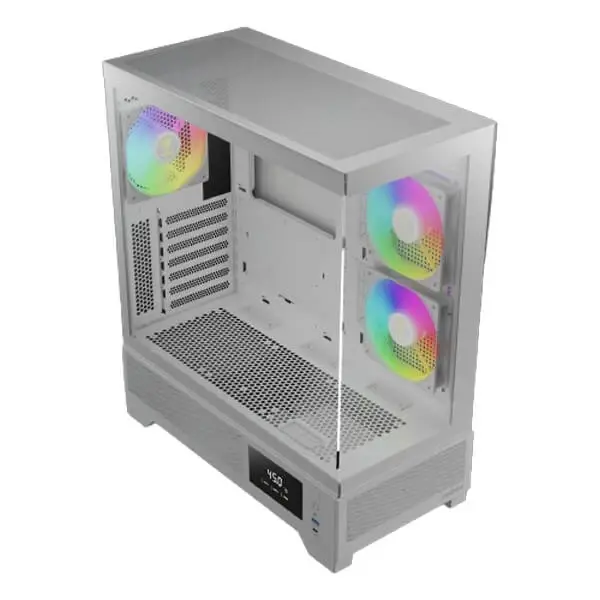

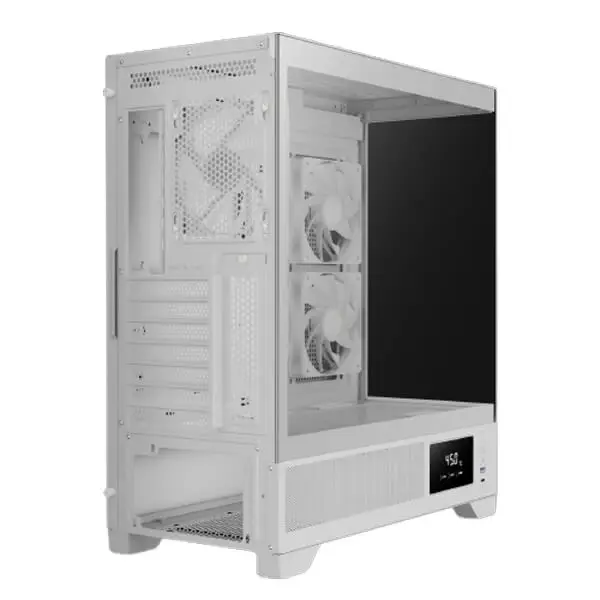

Gamdias Atlas M1 ARGB Mid Tower ATX Cabinet White
Gamdias Atlas M1 ARGB WH is a white mid tower pc cabinet that has front and side tempered glass panels. The Case can fit Mini-ITX, M-ATX or ATX motherboards and is compatible with 410mm GPU. The Cabinet also has pre-installed 3 built-in 120mm ARGB PWM fans.
Features:
FUNCTIONALITY WITH SEAMLESS VISUALS
- Seamless Tempered Glass Display
- Perforated Air Vent PSU Chamber
- 3 Built-in 120mm ARGB PWM Fans (2 x Reverse Intake Fans)
- Customized Monitor for System Information and Ambient Temperature
- Fits Mini-ITX, Micro-ATX and ATX motherboards
- Magnetic Dust Filter
- Compatible with 410mm GPU
FUNCTIONALITY WITH SEAMLESS VISUALS
The ATLAS M1 Series is available in black and white editions. The case features perforated air vents with three built-in ARGB PWM fans for optimal airflow and a customizable monitor for real-time system information. Enjoy the benefit of seamless tempered glass panels providing stunning visuals of your build.
POWERFUL VENTILATION
The ATLAS M1 WH is built with perforated air vents throughout the case, vents perforated on the side panel, PSU chamber, and back exhaust to ensure superior airflow configurations.
3 BUILT-IN ARGB PWM FANS
The case comes with three white ARGB PWM fans, with two preinstalled 120mm reverse intake fans on the side and one 120mm fan on the rear exhaust, providing excellent airflow and stunning ARGB visuals via the motherboard or LED control button.

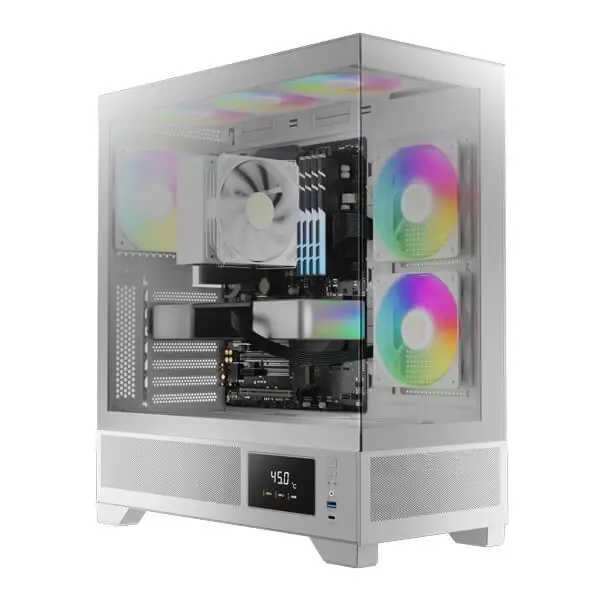

BREATHTAKING VISUALS
The ATLAS M1 WH provides a perfect view of all your components with its seamless glass panels equipped with a clasp mechanism for simple glass removal. The case excels in not only visuals but improves on the user’s modding experience.
MONITOR REAL-TIME STATUS
The embedded monitor displays real-time system information including CPU, GPU, and ambient temperature adjustable via ZEUS CAST software. Users can also switch between CPU/GPU/AMB/OFF modes through the I/O port.
COOLING SUPPORT
The ATLAS M1 WH can accommodate up to 6 fans and offers flexible options for the installation of radiators at the top, side, and rear.
INTERIOR ACCOMMODATION
The case offers the option to house up to ATX motherboards, air coolers with 160mm RAM clearance, and VGA cards with lengths up to 410mm.
DUST RESISTANT
Equipped with dust filters on the top and bottom, the case effectively protects against dust while maintaining ventilation.
CONCISE I/O DESIGN
The I/O features one USB 3.2 Gen 2 Type-C port for high transfer speeds up to 10 Gbps, a USB 3.0 port, a fan LED control, a monitor mode switch, and an integrated audio jack.
Specifications:
| Model Name | ATLAS M1 WH |
| Case Type | MID Tower |
| MB Support | ATX、Micro-ATX、Mini-ITX |
| Synchronization | 5V 3-Pin Addressable Header |
| CASE Color | White |
| Expansion Slots | 7+2 |
| Material | SPCC & ABS & Tempered glass |
| Window | Front, Left |
| Radiator Support | Top: 360mm、 280mm / Side: 240mm / Rear: 120mm |
| Fan Support | Top: 3 x 120mm、2 x 140mm / Side: 2 x 120mm / Rear: 1 x 120mm |
| Pre-installed Fans | Side: 2 x 120mm ARGB PWM Fans / Rear: 1 x 120mm ARGB PWM Fan |
| Drive Bays | 2 x 3.5″ or 1 x 2.5″+1 x 3.5″(HDD Cage) 2 x 2.5″(SSD Bracket) |
| I/O Port | USB 3.0 x 1, Type C x 1, HD Audio x1, LED Control x1, Monitor Mode Switch x 1 |
| Clearance | CPU cooler height limitation:160mm VGA length limitation:410mm PSU length limitation:180mm |
| Dimension (L x W x H) | 420 x 210 x 465 mm |
| Net Weight | 7.6 kg / 16 lb |
| Pre-installed Control BOX | 6 Ports Hub (3 ports are used) |
| Warranty | 1 Year |
| Note | ***Features, Price, Specifications are subject to change without notice. ***Images used for representation purposes only |
