Description

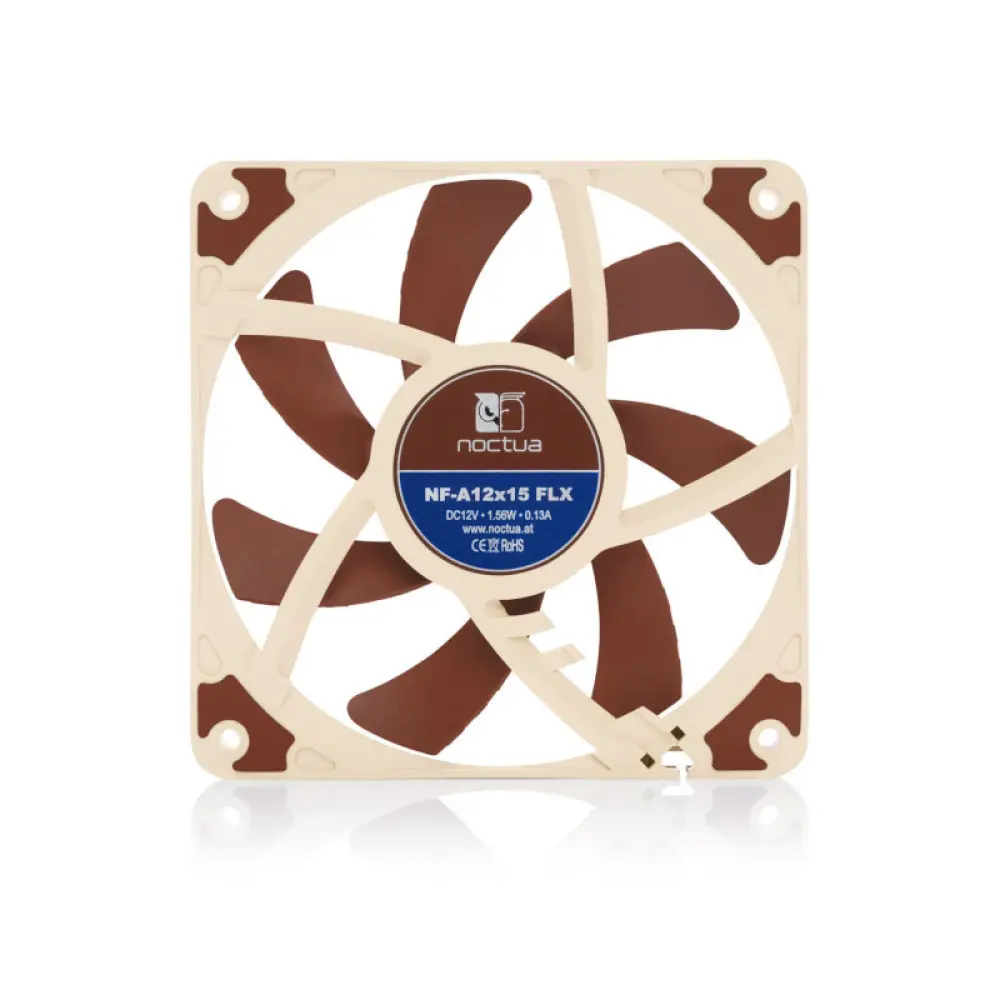

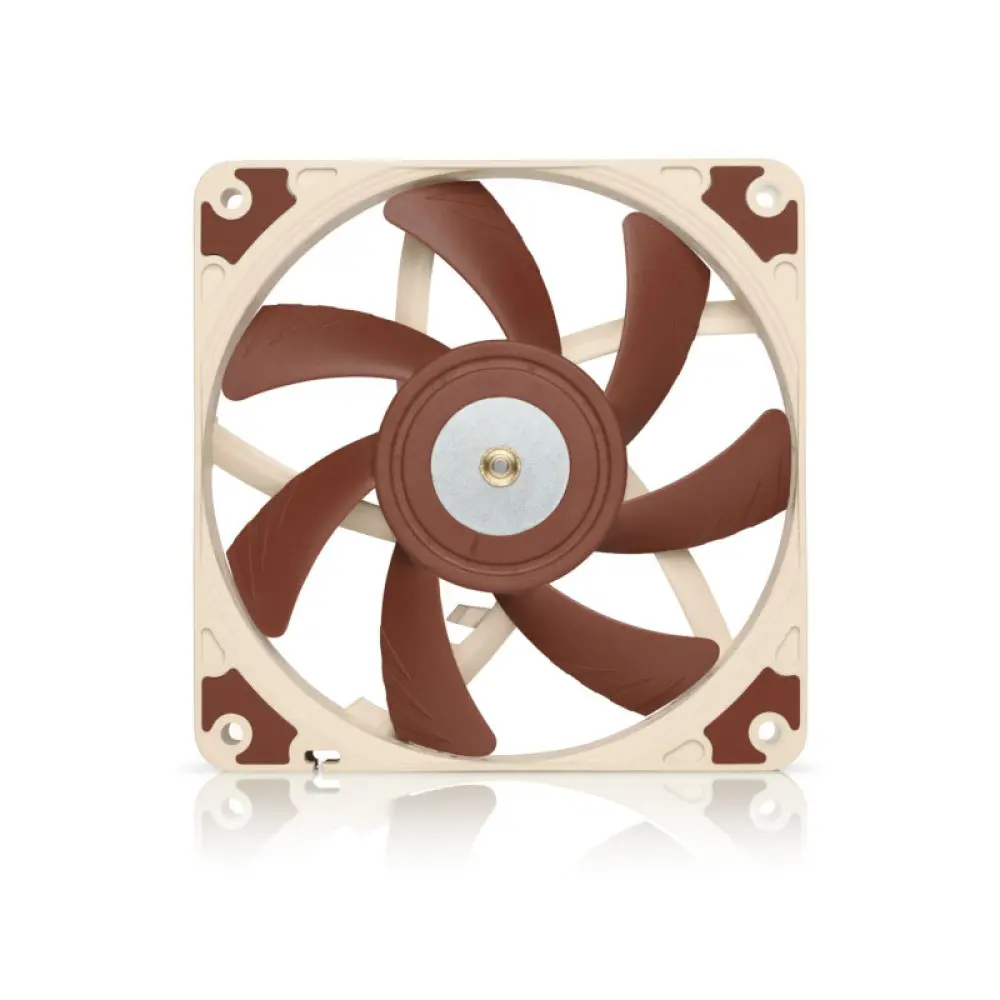

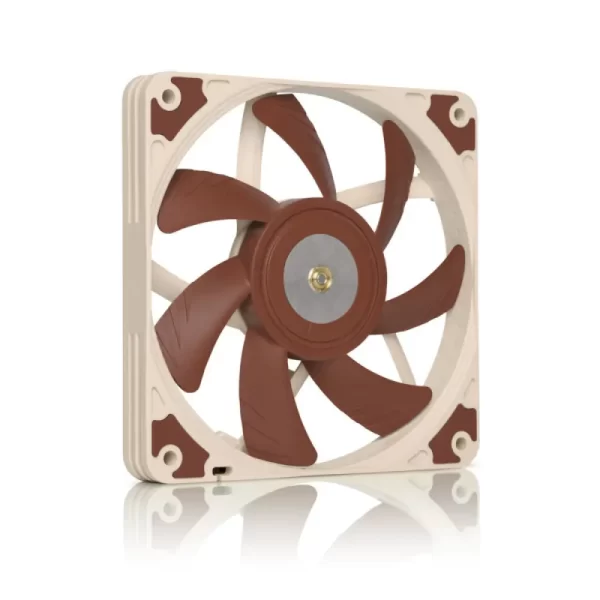

Noctua NF-A12x15 FLX Cabinet Fan
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A12x15 is a highly optimised, premium quality quiet fan in size 120x15mm. Its 15mm slim design makes the NF-A12x15 ideal for space-restricted applications such as low-profile CPU coolers or HTPC cases. The FLX version provides 1850/1400/950rpm speed settings via the supplied Low-Noise Adaptors in order to allow full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
| Specification | |
| Size | 120x120x25 mm |
| Mounting hole spacing | 105×105 mm |
| Connector & pin-configuration | 3-pin |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Rotational speed (+/- 10%) | 1850 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 1400 RPM |
| Rotational Speed with U.L.N.A. (+/- 10%) | 950 RPM |
| Airflow | 94.2 m³/h |
| Airflow with L.N.A. | 70.8 m³/h |
| Airflow with U.L.N.A. | 46.5 m³/h |
| Acoustical noise | 23.9 dB(A) |
| Acoustical noise with L.N.A. | 26.8 dB(A) |
| Acoustical noise with U.L.N.A. | 10.2 dB(A) |
| Static pressure | 1.53 mm H₂O |
| Static pressure with L.N.A. | 0.9mm H₂O |
| Static pressure with U.L.N.A. | 0.45 mm H₂O |
| Input power (typical) | 1.27 W |
| Input power (max.) | 1.56 W |
| Input current (typical) | 0.11 A |
| Max. input current | 0.13 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |

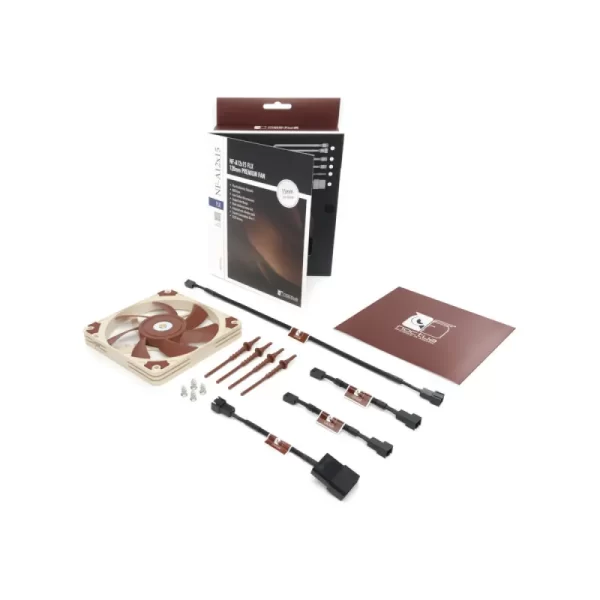

| Scope of delivery | Low-Noise Adaptor (L.N.A.) Ultra-Low-Noise Adaptor (U.L.N.A.) 3:4-pin power supply adaptor 30cm extension cable NA-AV3 anti-vibration mounts Fan screws |
| Warranty | 6 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
