Description

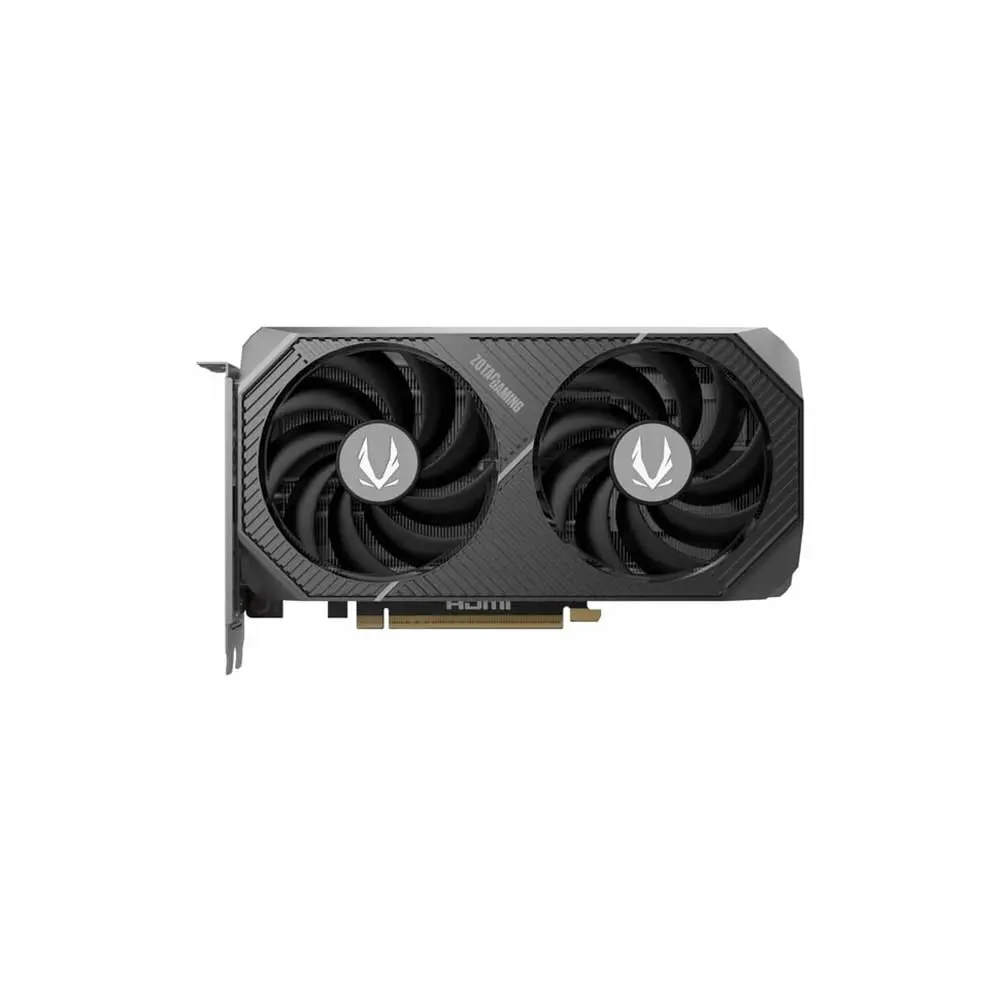

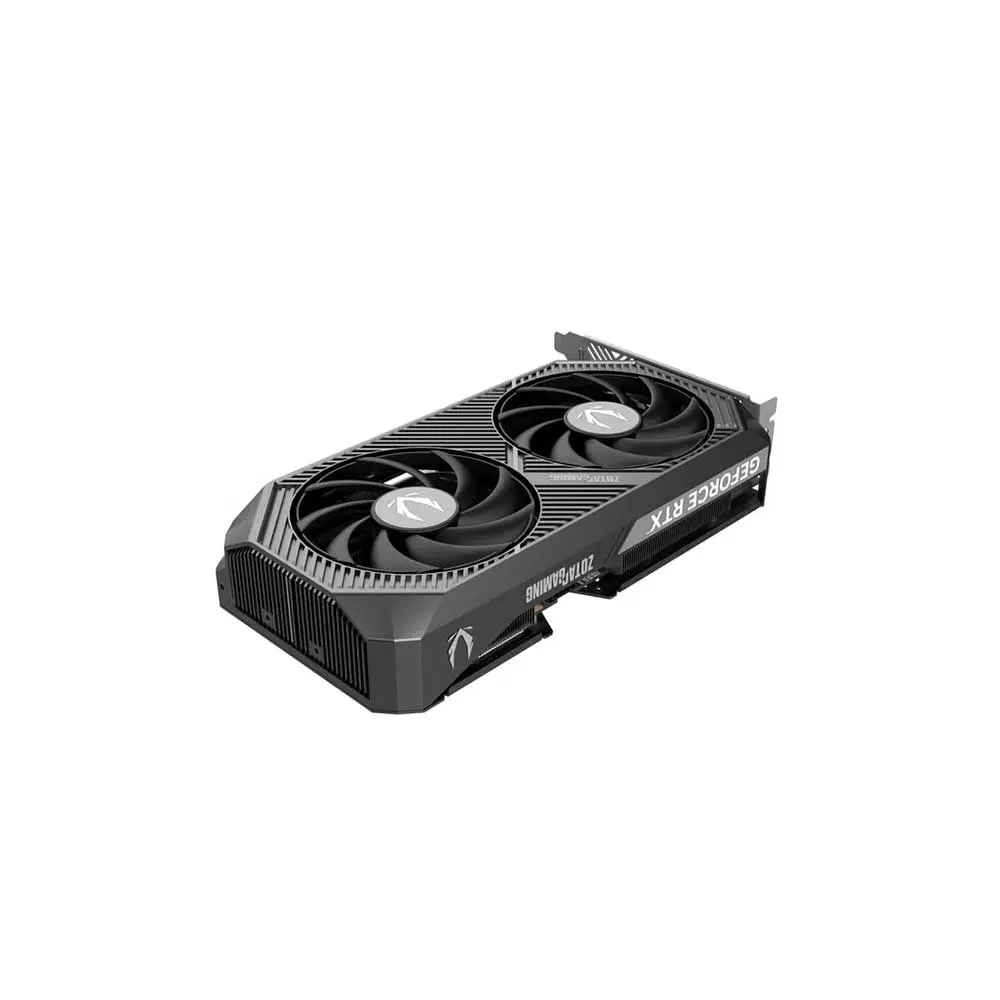

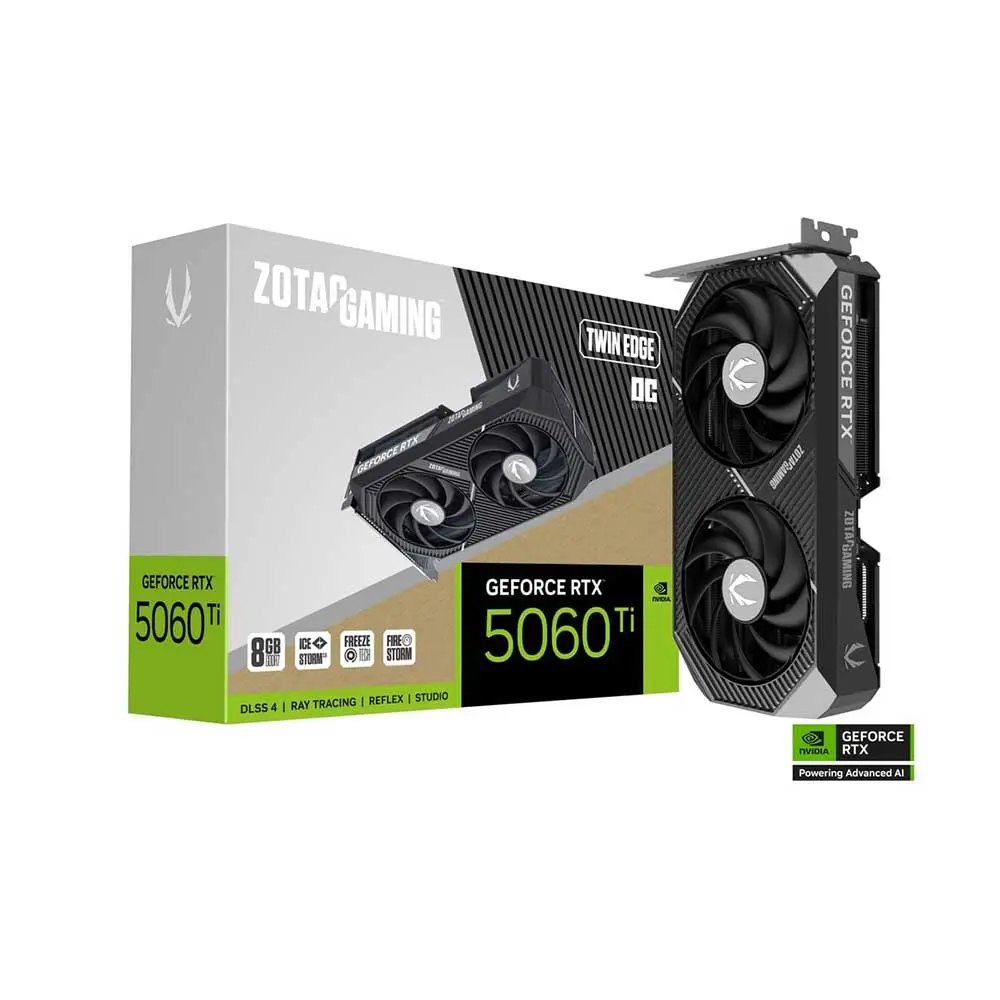

Zotac RTX 5060 Ti Twin Edge OC 8GB GDDR7 Graphics Card
The Zotac RTX 5060 Ti Twin Edge OC 8Gb is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a factory OC as well as a solid cooling solution, the Twin Edge OC is ready to take on the latest title releases with smooth framerates and performance.
Feature Highlights:
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- 8-Pin PCIe power connector
- SFF-Ready Graphics Card
- Compact dual-fan form factor
- IceStorm 2.0 Cooling
- BladeLink Fans
- FREEZE Fan Stop

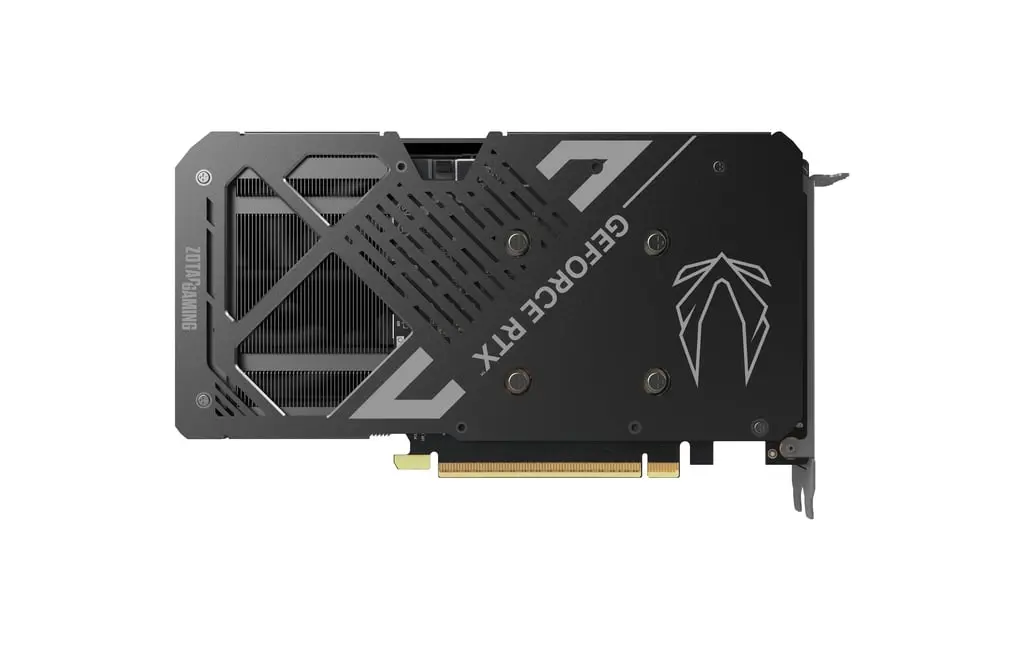

- Metal Backplate
- All-new FireStorm Utility
GPU | NVIDIA GeForce RTX 5060 Ti GPU |
Cuda Cores | 4608 |
Video Memory | 16GB GDDR7 |
Memory Bus | 128-bit |
Engine Clock | 2602 MHz |
Memory Clock | 28 Gbps |
PCI Express | PCI Express 5.0 x8 |

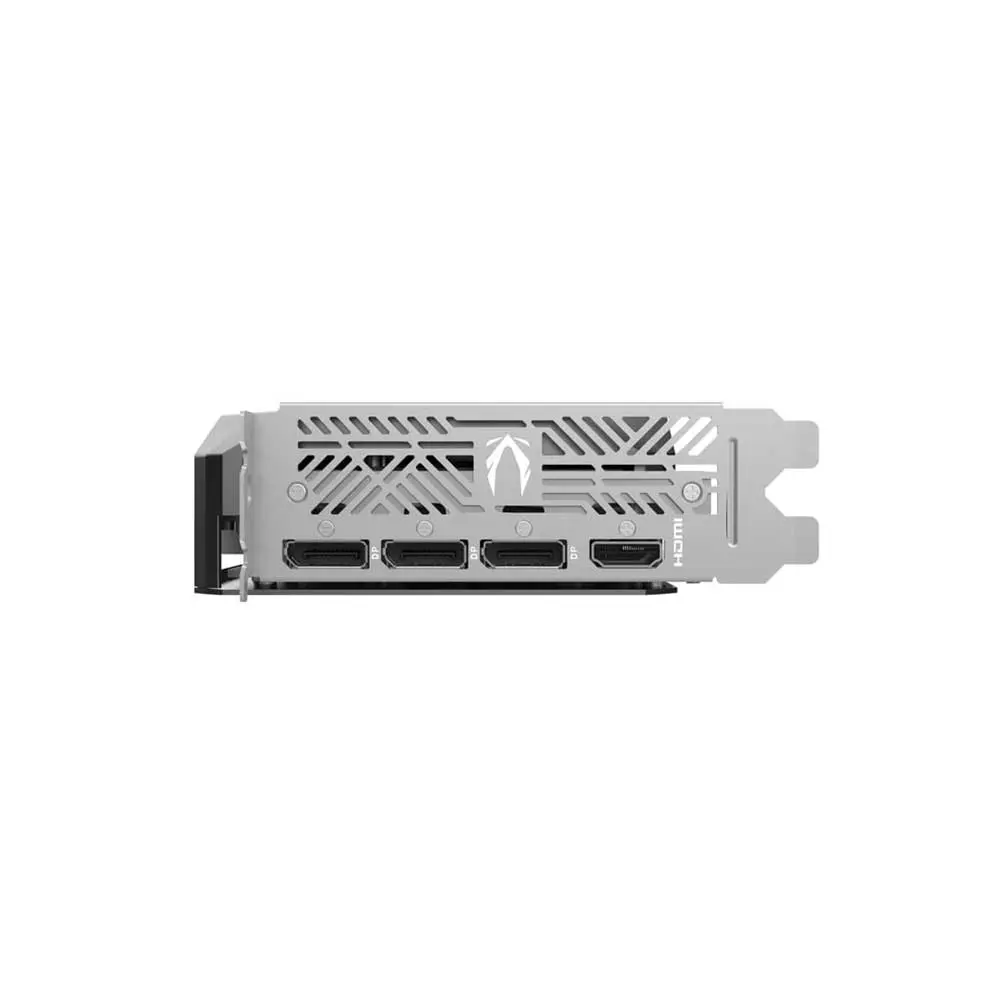

Display Outputs | 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) 1 x HDMI® Connector (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) |
HDCP Support | 2.3 |
Multi Display Compatibility | Quad Display |
Recommended Power Supply | 600W |
Power Consumption | 180W |
Power Input | 1 x 8-pin power input |
Direct X | Microsoft DirectX® 12 Ultimate |
Open GL | 4.6 |
Cooling | IceStorm 2.0 |
Slot Size | 2 |
SLI | No |
Supported OS | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
Card Length | 220.5mm x 120.25mm x 41.6mm / 8.7″ x 4.7″ x 1.6″ |
Accessories | User Manual |
Warranty | 3 Years |
Note** | **Prices, Specifications & Features are subject to change without notice |
